| Describe unmanaged, industrial Ethernet rail switch, fanless design, store and forward switching mode, fast Ethernet port types and quantities 8 x 10/100BASE-TX, TP cable, RJ45 socket, automatic crossover, automatic negotiation, automatic polarity more interface power/signal contacts 1 x plug-in terminal block, 3-pin network scale - cable length twisted pair (TP) 0-100 meters network scale - cascading line -/star topology, maximum current consumption at 24 V DC for any power requirement. Maximum energy consumption of 63mAh working voltage 12/24V DC (9.6-32V DC). 1.5 watts of power output in BTU (IT)/h 5.3 diagnostic function diagnostic function LED (power, link status, data, data rate) environmental conditions average time between failures 2.218.157 hours (Telcordia) operating temperature -40-+70 ° C storage/transportation temperature -40-+85 ° C relative humidity (non condensing) 10-95% mechanical structure dimensions (width x height x depth) 38 x 102 x 79 millimeters (excluding terminal blocks) weight 150 grams installation DIN rail protection level IP30 plastic mechanical stability IEC 60068-2-6 vibration 3.5 millimeters, 5-8.4 hertz, 10 cycles, 1 octave band/minute 1 g, 8.4-150 hertz, 10 cycles, 1 octave band IEC 60068-2-27 impact 15 g per minute, duration 11 ms, 18 impacts EMC anti-interference EN 61000-4-2 electrostatic discharge (ESD) 4 kV Contact discharge, 8 kV air discharge EN 61000-4-3 electromagnetic field 10V/m (80-3000 MHz) EN 61000-4-4 fast transient (burst) 2kV power line; 4kV data line (SL-40-08T only has 2kV data line) EN 61000-4-5 surge voltage power line: 2kV (line/ground), 1kV (line/line); 1kV data cable EN 61000-4-6 Conducted immunity 10V (150 kHz -80 MHz) EMC emission immunity EN 55022 EN 55032 A-class FCC CFR47 Part 15 FCC 47CFR Part 15, A-class approved basic standards CE, FCC, EN61131 Scope of supply and accessories Rail power supply RPS 30/80 EEC/120 EEC (CC), wall mounting plate for DIN rail installation (width 40/70 mm) |
|
|
|

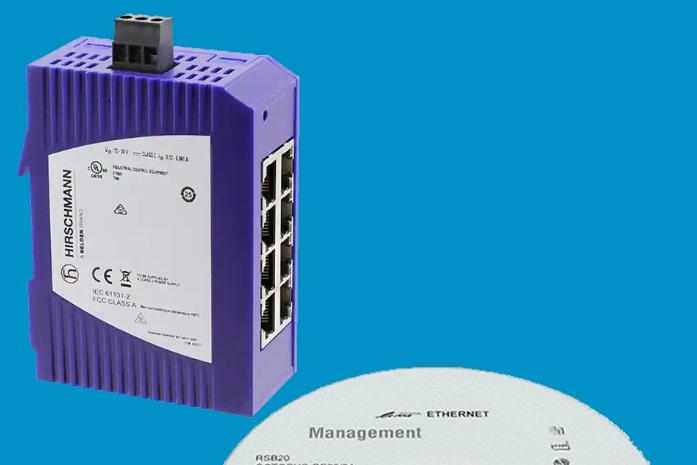

Product Image
|
