Any line -/star topology
Power requirements
Working voltage: 24V DC (18-32V)
Energy consumption 18.0 watts
Power output in BTU (IT)/h 61
Software
Exchange independent VLAN learning, fast aging, static unicast/multicast address entries, QoS/port priority (802.1D/p), TOS/DSCP priority, interface trust mode, CoS queue management, IP ingress DiffServ classification and regulation, IP egress DiffServ classification and regulation, queue shaping/maximum. Queue bandwidth, traffic control (802.3X), exit interface shaping, entrance storm protection, jumbo frames VLAN (802.1Q)、 Protocol based VLAN, VLAN unknown mode, GARP VLAN registration protocol (GVRP), voice VLAN, MAC VLAN, IP subnet based VLAN, GARP multicast registration protocol (GMRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), unknown multicast filtering, MVRP, MMRP, MRP Layer 2 loop protection
Redundant HIPER Ring switches HIPER-Ring over Link Aggregation、 Link aggregation with LACP, link backup, Media Redundancy Protocol (MRP) (IEC62439-2), MRP over Link Aggregation, redundant network coupling, sub ring manager, RSTP 802.1D-2004 (IEC62439-1), MSTP (802.1Q), RSTP protection
Manage DNS clients, dual software image support TFTP、SFTP、SCP、LLDP (802.1AB)、LLDP-MED、SSHv2、V.24、HTTP、HTTPS、Trap、SNMP v1/v2/v3、Telnet OPC-UA The server
Diagnostic management includes address conflict detection, MAC notification, signal contact, device status indication, TCPDump, LED, Syslog, persistent records on ACA, email notification, automatic disabling of port monitoring, link jitter detection, overload detection, duplex mismatch detection, link speed and duplex monitoring, RMON (1,2,3,9)， Port mirroring 1:1, port mirroring 8:1, port mirroring N: 1, RSPAN, SFLOW, VLAN mirroring, port mirroring N: 2, system information, self cold start test, copper cable test, SFP management, configuration check dialog box, switch dump, snapshot configuration function
Configure auto configuration undo (rollback), configure fingerprinting, text-based configuration file (XML), backup configuration on remote server upon save, clear configuration but retain IP settings, BOOTP/DHCP client with auto configuration, DHCP server: per port, DHCP server: pool for each VLAN, auto configuration adapter ACA31 (SD card), auto configuration adapter ACA21/22 (USB), HiDiscovery, DHCP relay with option 82, command-line interface (CLI), CLI script, CLI script startup through ENVM processing, full-featured MIB support, web-based management, context sensitive help, HTML5 based management
Security based on MAC port security, 802.1X based port access control, guest/unauthenticated VLANs, Integrated Authentication Server (IAS), Radius VLAN allocation, Radius policy allocation, multi client authentication for each port, MAC authentication bypass, MAC format option authentication bypass, DHCP listening, IP source protection, dynamic ARP detection, denial of service protection LDAP、 ACL based on ingress MAC, ACL based on egress MAC, ACL based on ingress IPv4, ACL based on egress IPv4, ACL based on time, ACL based on VLAN, ACL based on ingress VLAN, ACL based on egress VLAN, ACL based on ACL flow restrictions, access to management restricted by VLAN, device security indication, audit trail, CLI logging, HTTPS certificate management, restricted management access, appropriate use of banners, configurable password policy, configurable login attempt count, SNMP logging, multiple permission levels, local user management, remote identity verification through Radius, user account lockout, password change upon first login
Time synchronization PTPv2 transparent clock two-step, PTPv2 boundary clock, buffered real-time clock, SNTP client, SNTP server
Industrial profiles EtherNet/IP protocol, IEC61850 protocol (MMS server, switch model), Modbus TCP, PROFINET protocol
Various digital IO management, manual cable crossing, port power failure
environment condition
Working temperature 0-+60 ° C
Storage/transportation temperature -40-+70 ° C
Relative humidity (non condensing) 5-95%
mechanical structure
Dimensions (W x H x D) 391 x 148 x 142 millimeters
Weight 2.65 kilograms
Install DIN rail
Protection level IP20
mechanical stability
IEC 60068-2-6 Vibration 5 Hz -8.4 Hz, amplitude 3.5 mm; 8.4 Hz-150 Hz, 1 g
IEC 60068-2-27 Impact 15 g, 11 ms duration, 18 impacts
EMC anti-interference capability
EN 61000-4-2 Electrostatic Discharge (ESD) ± 4 kV Contact Discharge; ± 8 kV air discharge
EN 61000-4-3 Electromagnetic Field 10 V/m (80 MHz-3000 MHz)
EN 61000-4-4 Fast Transient ± 2 kV Power Line; ± 4 kV data line
EN 61000-4-5 Surge Voltage Power Line: ± 2 kV (line/ground), ± 1 kV (line/line); Data line: ± 1 kV (line/ground)
EN 61000-4-6 Conducted Immunity 10 V (150 kHz-80 MHz)
EMC emission immunity
EN 55022 EN 55032 Class A
FCC CFR47 Part 15 FCC 47CFR Part 15, Class A
approval
Basic standards CE, FCC, EN61131
Industrial control equipment safety EN 60950
Transportation without TS2
Scope of Supply and Accessories
Accessories MICE switch power supply media module MSM; Guide rail power supply RPS 30, RPS 60/48V EEC, RPS 80, RPS 90/48V HV, RPS 90/48V LV, RPS 120 EEC; USB to RJ45 terminal cable; Sub-D to RJ45 terminal cable automatic configuration adapter (ACA21, ACA31); Industrial HiVision Network Management System; 19 inch installation rack |
|
|
|

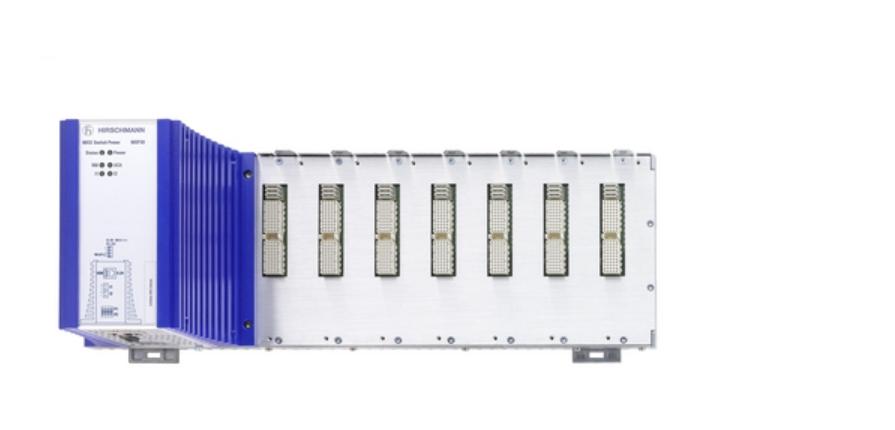

Product Image
|
